Elant
Integrated Solar Lights
Share
Key Benefits
Key Benefits
High Brightness – Up to 9,000 lumens across three models.
Smart LED Screen – Shows real-time status (battery, brightness, mode).
Dual Color Temperature – Switch between warm and cool light.
Rain Sensor Mode – Automatically dims during rain to conserve power.
Flexible Installation – Wall or pole mount (vertical/horizontal).
Durable & Weatherproof – IP65 / IK08 rating, works in ‑10°C to 55°C.
Long Backup – >36 hrs lighting even in rainy weather.
Certified Safe – No photobiological risk (EN 62471 compliant).
Low Maintenance – Modular design for easy part replacement.
Product Description

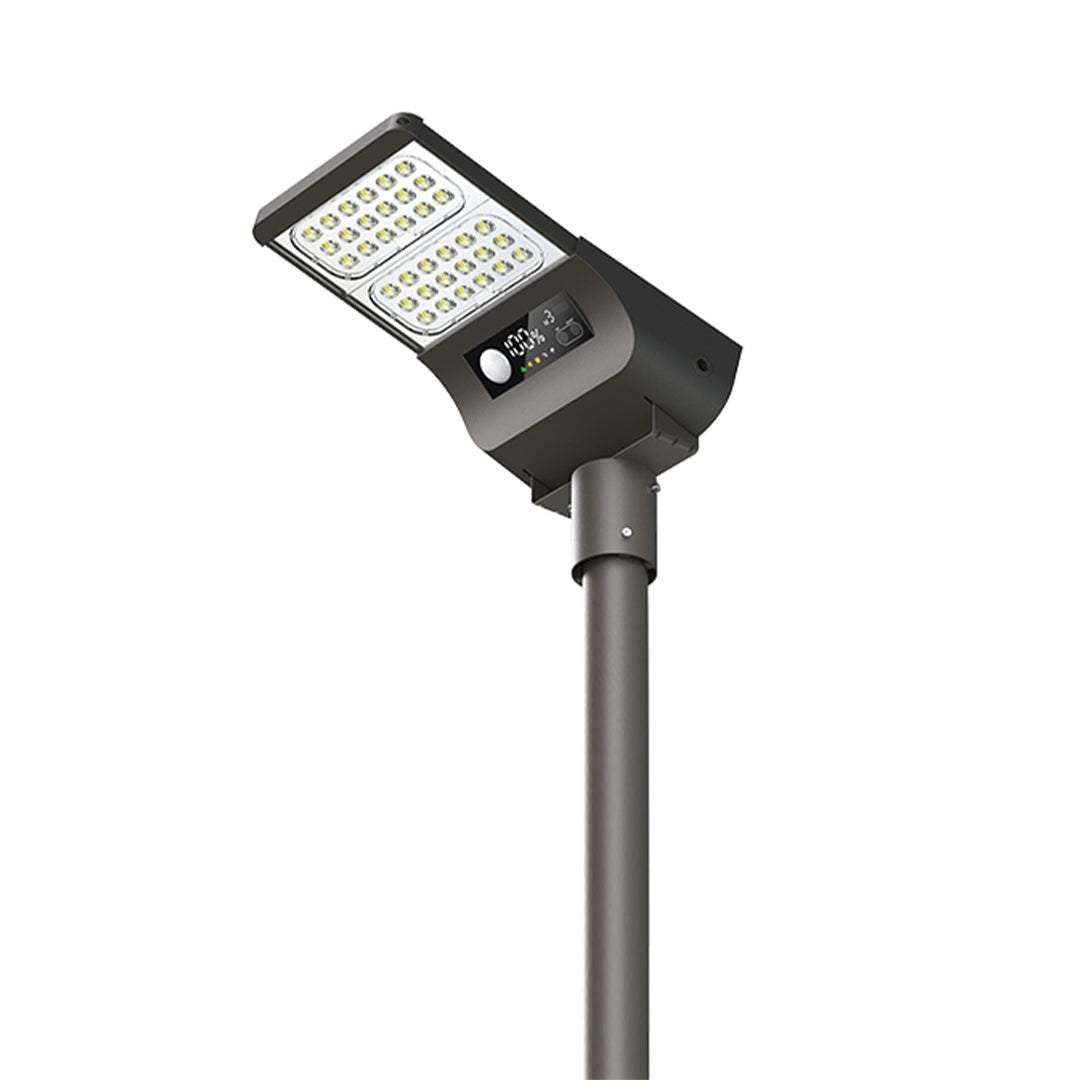

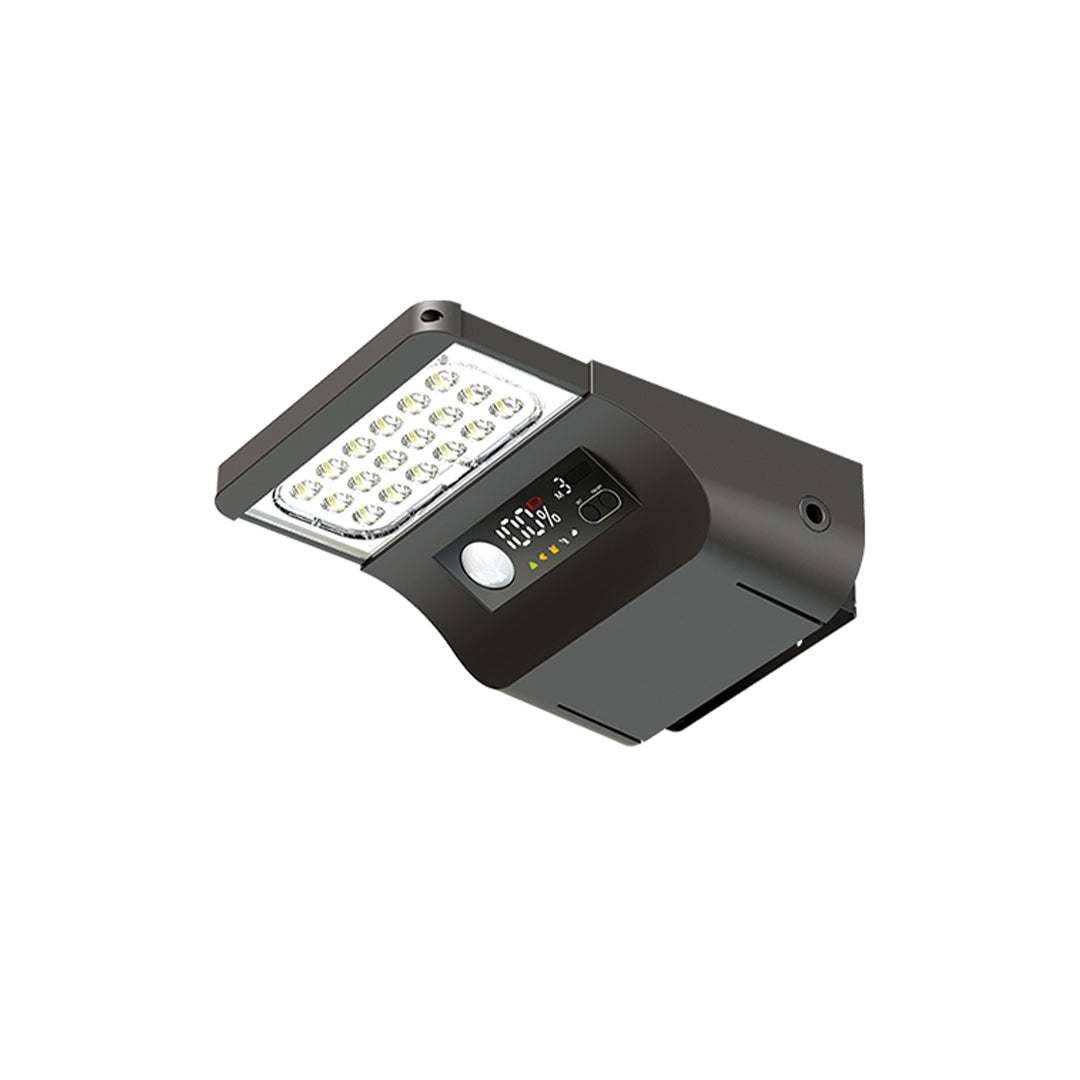

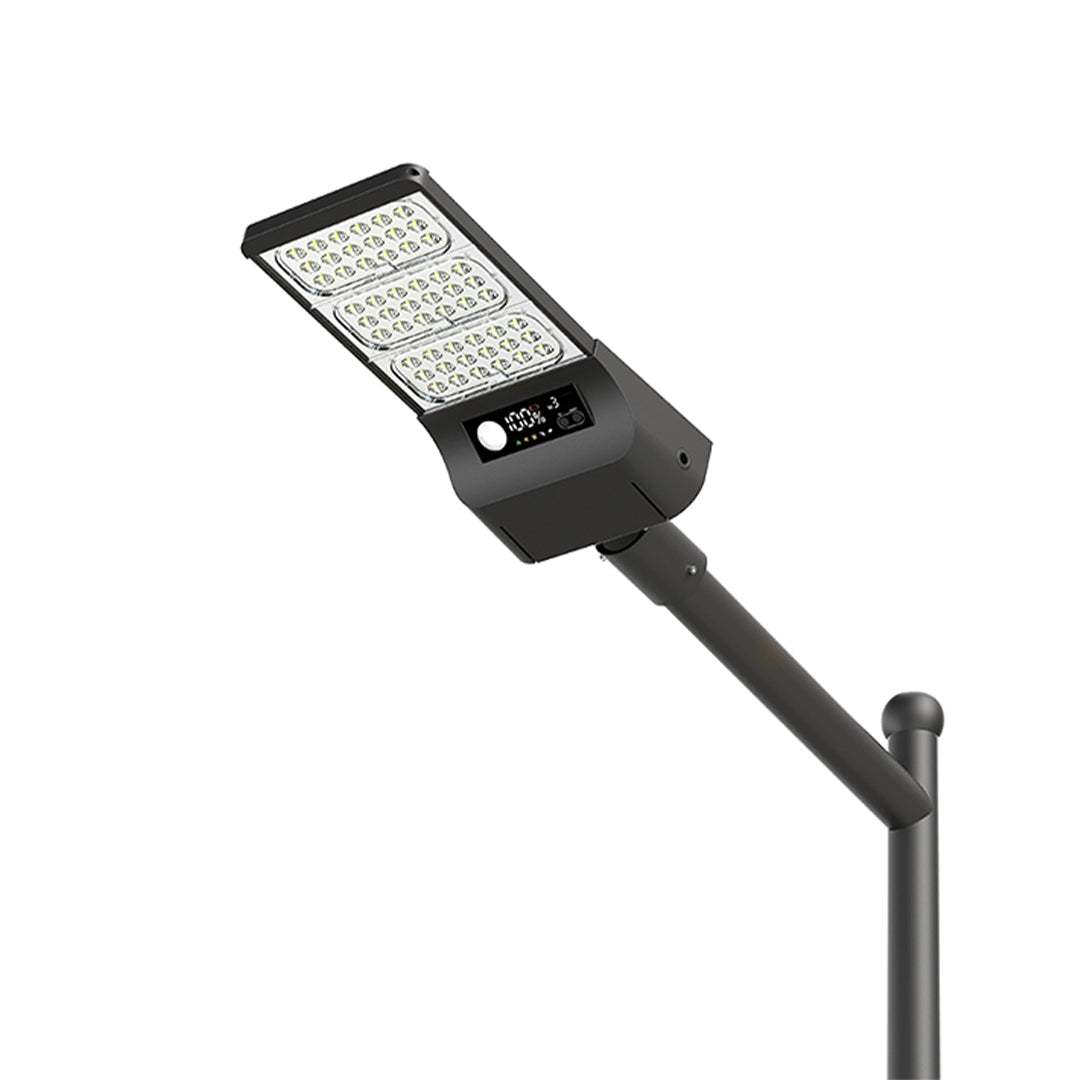

ESL‑53 / ESL‑56 / ESL‑59 Solar Street Lights
Inspired by rainy days, the Alpha Series is a solar lighting solution that combines intelligent sensors, modern design, and energy-efficient technology. It features a unique LED screen, rain detection, flexible installation, and customizable color temperature.
Key Features
- Smart LED screen with real-time status: battery, brightness, CCT & modes
- Rain sensor triggers dim lighting mode during precipitation
- Multi-power input: solar, AC adapter, or USB charging
- Dual color temperature: switch between 3000K (warm) and 5700K (cool)
- Three mounting styles: wall, horizontal pole, or vertical pole
- Advanced TCS: Temperature control ensures stability from -10°C to 60°C
- Durable structure: aluminum body, SUS304 screws, modular replacement
- Polymer optical lens: improved light distribution
- Midnight/3-stage light mode based on ambient sensor
- Certified “No Photobiological Risk” under EN 62471
- ALS Technology: current control for consistent lighting (Patent No. 201710713248.6)
Technical Specifications
| Model | Solar Panel | Battery Type | CCT | Lumens | PIR Angle | PIR Distance | Install Height / Span | IP / IK Rating | Operating Temp | Rainy Lighting Time |
|---|---|---|---|---|---|---|---|---|---|---|
| ESL‑53 | Monocrystalline glass lamination | 18650 NCM | 3000K / 5700K, Ra70 | 3000 lm | 120° | 8 m | 3 m / 3 m span | IP65 / IK08 | -10~55°C | >36 hrs |
| ESL‑56 | Monocrystalline glass lamination | 18650 NCM | 3000K / 5700K, Ra70 | 6000 lm | 120° | 8 m | 4 m / 4 m span | IP65 / IK08 | -10~55°C | >36 hrs |
| ESL‑59 | Monocrystalline glass lamination | 18650 NCM | 3000K / 5700K, Ra70 | 9000 lm | 120° | 8 m | 5 m / 5 m span | IP65 / IK08 | -10~55°C | >36 hrs |
Installation Options
